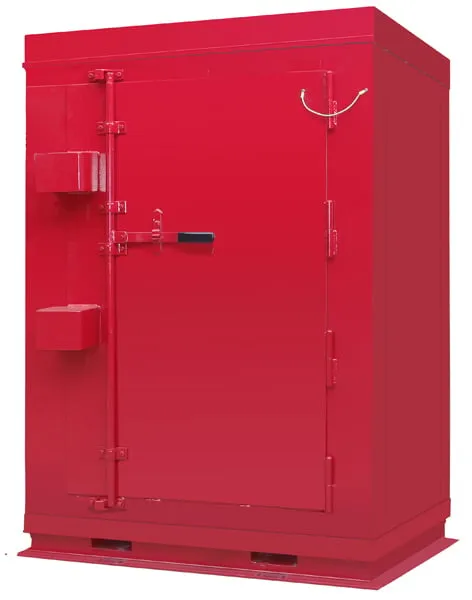

M200T2O - Type 2 Explosive Storage Magazine
SKU: M200T2O
M200T2O - Type 2 Explosive Storage Magazine
SKU: M200T2O
Dimensions: 83.00H x 60.00W x 42.00L
Features & Specifications
Type 2 Magazines are made for the storage of High Explosives and are made for indoor or outdoor storage placement. Per ATF regulations an indoor magazine may not hold more than 50 Lbs. of explosive materials and outdoor magazines must be built to a bullet resistant design.
Our Explosive Storage Magazines are portable and can be placed in most locations with a flat surface. These magazines are built for turn-key installation which also allows for easy relocation if needed.
Bullet Rated Magazines are quoted with (4) walls, including the door, to be Bullet Resistant will require a pre-approved variance by your local ATF field office.
Bullet Resistant Roof and Floor are available as additional options.
Type 2 Outdoor Magazine Bullet Resistant Design with Top, Floor, Sides and Doors Meets or exceeds ATF specs 27 CFR 555.11. (Pg. 75 ATF Ruling 76-18 (b)).
All Securall Magazines are designed to be Weather, Fire and Theft Resistant. Additionally, Securall is the only Magazine Manufacturer currently offering an optional upgrade of 2 hour Fire-Rated Walls. Also, our proprietary wall design has been tested and rated to withstand F-5 Tornado winds and associated impacts (Texas Tech University Wind Science and Engineering Research Center).
Bullet Resistant Test
Image 1 - Interior of Wall Panel (Pre Shoot) - Total Steel Thickness: 05095"
Image 2 - .308 Bullet Impact
Image 3 - .308 Bullet Casing Caught in Outer Wall
Image 4 - .308 Rounds Completely Stopped at Interior Plate
Image 5 - .308 Rounds Completely Stopped in Wall Channel
Image 6 - .308 Impacts - No Damage in Interior Wall
Attributes
| Bullet Resistant Wall Design | Bullet Resistant Wall Design |
|---|---|
| Fire Rating | No Fire Rating |
| Number of Shelves | 2 |
| Quote Only | Yes |
| Shipping Dimension (H x W x D) | 6'11" H x 5' W x 3'6" D |
| Type | Type 2 Magagine |
| Use Cases | Explosive Storage |
| Warranty | 15 Year Structural Limited |
Paint Color
The interior and exterior finish consists of an aliphatic polyurethane finish. This polyurethane coating has chemical properties to withstand salt spray, chemical rub, fading due to UV exposure, and other tests performed to epoxy paints. Urethane is more durable under conditions when moving items in and out of the cabinet as it resists chipping and peeling. Unless some other color is specified, cabinets will ship in designated standard color. For custom colors, customer must provide a paint chip.
